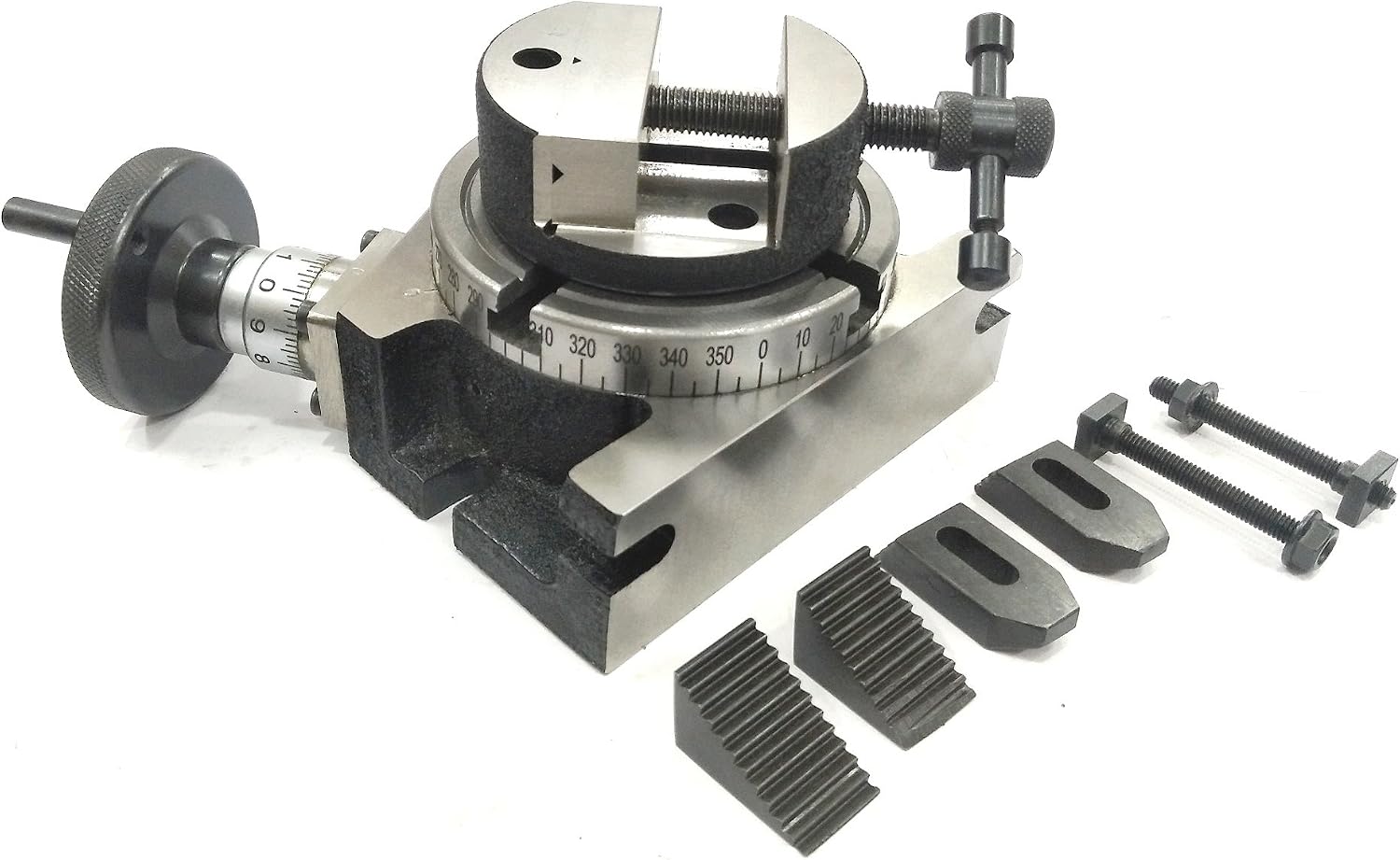

Milling Indexing 4"/ 100 Mm Rotary Table Quality Precision Horizontal Vertical With Suitable M6 Clamp Kit & Round Vice/Vise (With 80 MM Round Vice)

Description of 4" (100 mm) rotary table designed for smaller milling machines. Table diameter 100 mm table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-1/16" (50 mm approx). Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position. Details of round vice: details of round vice: * 80 mm round vice - made of high grade close grain caste iron. * designed to fit our 3" (75 mm) & 4" (100 mm) rotary tables. * the moving jaw has v-grooves to hold round objects. * again these vices are drilled in a manner that these can fit to a 3 as well 4 slot table. * the drills are counter bored to ensure that the fixing screws sets perfectly ensure perfect movement. * diameter of base : 80 mm * jaw width : 54 mm * jaw depth: 20 mm * jaw opening : 32 mm * height : 29 mm

• Set Of Quality 4" Inches/ 100 MM Regular Rotary Table With Suitable M6 Clamp Kit & 80 Mm Round Vises/ Vices
• Table Diameter Is 4" / 100 MM & Is Graduated 360 Degrees. Worm: Gear Ratio Is 1: 36, Which Means 1 Handle Rotation Turns The Table By 10 Degrees.
• Center Height In Vertical Position 2-1/16"/ 50 MM ( * Only The Table) . It Can Be Mounted Horizontally And Vertically.
• Supplied With A Clamp Kit & Quality Caste Iron 80 Mm Diameter Round Vice With Clamping T Nuts. The Moving Jaw Has Vertical & Horizontal V Grooves To Hold A Round Job.
