DC 6V 12V 24V P0 DC Motor Forward Reverse Controller 20A High Current with Limit Relay Driver Lifting Control Board

Parameters: Model：TKS-M8(P0) Power Source: DC Output Current: 20A Operating Voltage: Wide DC Voltage Range 6.0V-40V Recommended operating voltage range: 6V to 36V Module Power Consumption: 0.6W (Excluding Load Motor),Quiescent Power: 0.1W Max Motor Capacity Supported：100W Recommended power: not to exceed 80W Response Time: 20ms for K1/K2, 50ms for SW1/SW2 PCB size：83*46*20mm Weight：38g

• For P0 version: The module will self-lock and keep running after a single trigger pulse. The limit switch signal is normally open type.
• When the motor is rotating forward and a reverse signal is received, it will stop immediately and reverse after a 0.3-second delay. The limit signal has priority: the motor stops instantly once the forward limit signal is triggered during forward rotation.
• Forward rotation cannot be activated when the forward limit signal is triggered, and the same applies to reverse rotation.

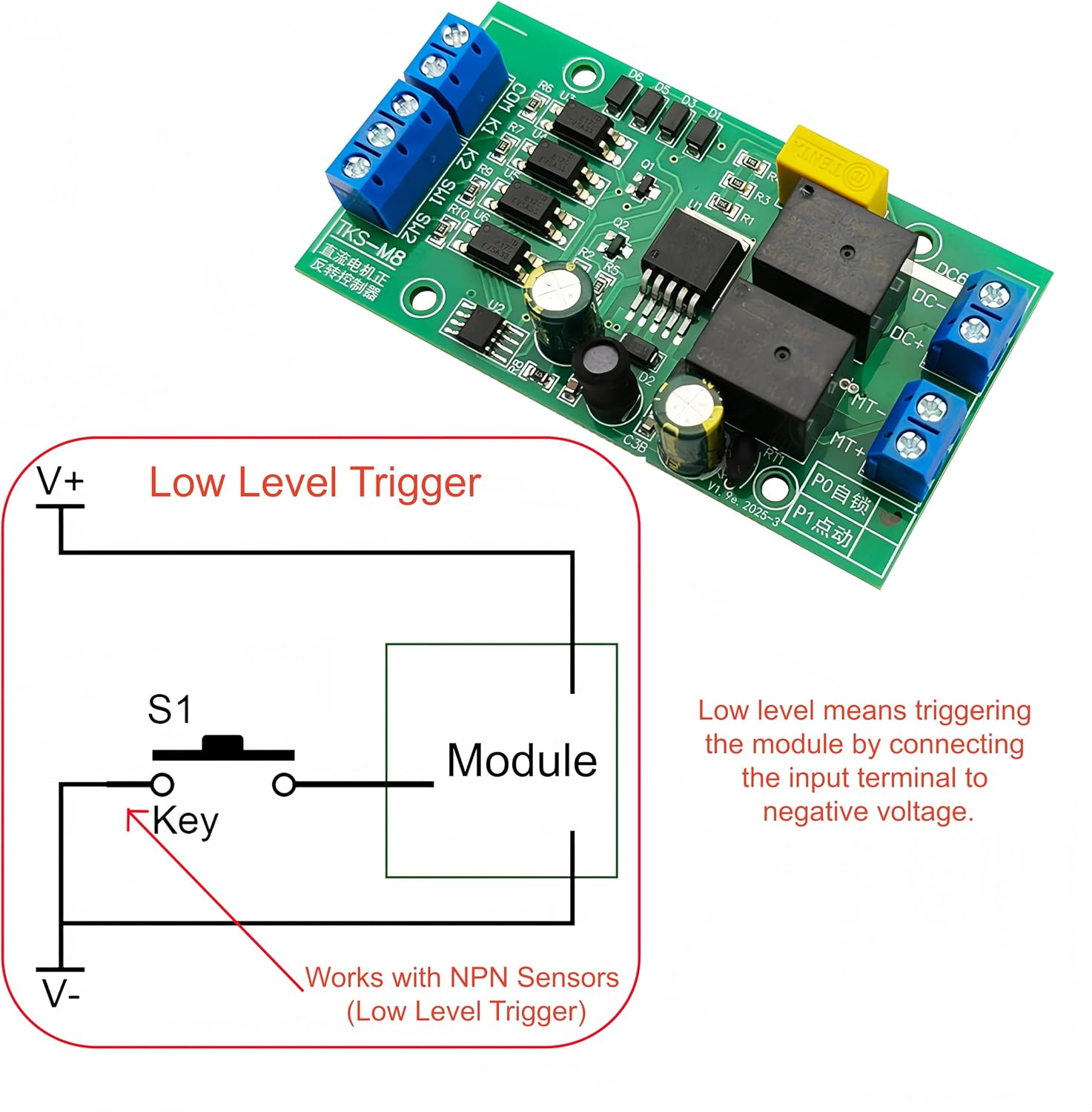

• Forward and reverse signals are active at low level. A brief 0V level signal (connected to power negative terminal) will trigger activation.
• The TKS-M8 has no built-in timing function, so it cannot perform automatic reciprocating motion on its own. However, when paired with a start switch, start limit switch (A) and end limit switch (B), it can run back and forth infinitely between point A and point B.
